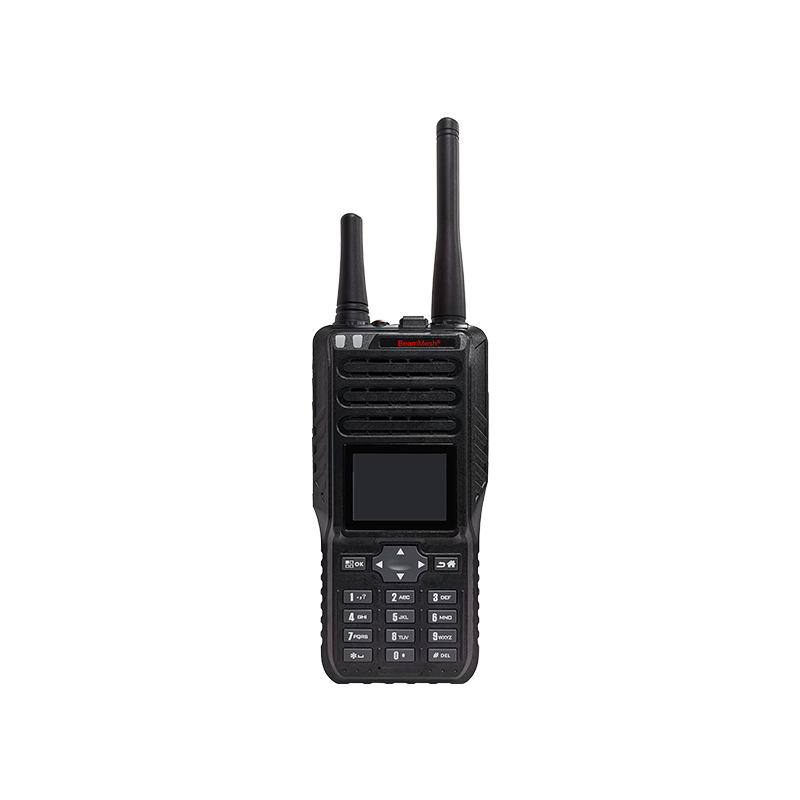

BEAMmesh Series MANET Broadband MESH Handheld

Grande immagine : BEAMmesh Series MANET Broadband MESH Handheld

Dettagli:

Luogo di origine:	Guangdong, Cina
Marca:	WDS
Numero di modello:	Trave

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 UNITÀ
Prezzo:	$5150/unit
Imballaggi particolari:	Scatola
Tempi di consegna:	4-7 mesi
Termini di pagamento:	T/T

Contatto

BEAMmesh Series MANET Broadband MESH Handheld

descrizione

Tipo:	Portatile	Parametro dello schermo:	LCD TFT da 1,8"(320×240)
Batterie principali e di riserva:	7,2~8,4 V, 3000 mAh	Memoria/archiviazione:	2 GB di RAM + 16 GB di ROM, Micro SD da 128 GB
Frequenza di lavoro:	520-650, 1200-1500 MHz	Larghezza di banda del trasportatore:	Impostazione 1,25/2,5/5/10/20 MHz
Evidenziare:	BEAMmesh handheld MANET broadband device , MESH wireless broadband handheld unit , MANET broadband MESH communication tool

Mesh Radio-MANET Broadband MESH Handheld

• Supports two-band selection in UHF/L Band/S Band/C Band, switching work
• 1T2R, 1W linear silicon-based gallium arsenide power amplifier, dual antenna diversity reception, -103dBm@5MHz high sensitivity.
City ground 1~5 km, open LOS 50~100 km
• Space-time coding, high-speed throughput above 56Mbps; Spatial multiplexing, the rate of more than three hops does not decline
• Classic SDR platform, software and hardware are independent and controllable
• HTDMA, large-scale networking of nodes above 256
• Heterogeneous intelligent channel selection networking, and dynamic adaptive frequency hopping strong anti-interference
• Support DES/AES and other software encryption, and TF card hardware encryption
• It is compatible with MIMOmesh/SMARTmesh/ULSC series
• PDT/DMR digital intercom, and 4G/5G routing, can be expanded
• Rugged, friendly to the touch, IP67 waterproof, military-grade harsh environment

BEAMmesh Series MANET Broadband MESH Handheld 0

MANET Broadband MESH Handheld Specifications

System Parameters
Application processor	Octa-core A53 processor with maximum operating frequency of 1.8GHz
Operating system	Android 6.0
Screen parameter	1.8'', TFT LCD(320 X 240)
Memory/storage	2GB RAM+16GB ROM, 128G Micro SD
Voice services	Supports VoIP (PTT) and multi-party conferences
Data service	Support file transfer, short message, GIS, iot data transmission, etc
Video service	Video pull-up, video conferencing, and more are supported
Audio, video and data interfaces	20PIN LEMO IP/USB, 5PIN aviation head words, WiFi IP
Main and standby batteries	7.2~8.4V,6800mAh
Endurance time	≥6h (Transmit: Receive: idle = 1:1:1)
Locate the navigation	Built-in GPS/BD
Size	15.5x6.6x3.2cm (Contains lithium battery, does not include antenna and back clip)
Weight	430g (Contains lithium battery, does not include antenna and back clip)
Environmental
Protection Level	IEC60529-IP67(1.5m,0.5h)
Shock and vibration	MIL-STD-810G
Operation Temperature	-40ºC~+80ºC
Storage temperature	-55ºC~+100ºC
Humidity requirement	10%~90%(No condensation)
Wireless communication
Communication format	Mobile Ad-hoc NETworking Ad hoc network
Working frequency (70M~6GHz, customized)	350-450/450-550/570-700/800-950MHz, 1000-1200/1300-1500/1600-1800/1800-2000,1200-1700MHz, 2.0-2.2/2.2-2.5/2.5-2.7/2.7-2.9,1.6-2.3/1.9-2.7GHz, 4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0*GHz
Transmission system	TDD-COFDM
Receive sensitivity	≤-103dBm@5MHz
Transmit power	1W
Carrier bandwidth	1.25/2.5/5.0/10.0MHz Optional
Transmission capability	56Mbps@10MHz
Modulation Mode	BPSK/QPSK/16QAM/64QAM/256QAM(Adaptive)
Network scale	Same-frequency networking supports more than 256 nodes
Anti-jamming Mode	Inter-frequency intelligent channel selection, full-band dynamic adaptive frequency hopping
Encryption	DES56/AES128/AES256 Optional
Interface
Antenna Interface	SMAx2
IP Interface	Waterproof navigation plug (reusable with USB interface)
USB Interface	Waterproof navigational plug (reusable with IP interface)
Headset interface	Contact Wired Headset (PTT)
Basic peripheral	Microphone (dual MIC), speaker
Front key	Menu button, Home button, confirm button, back button, 4 way button, number button
Side key	PTT button, Volume adjustment button, Power button (top), SOS button (top)
WiFi AP	2.4GHz/5.8GHz,802.11b/g/h

Standard Fittings:
BEAMmesh Series MANET Broadband MESH Handheld 1

Optional accessories:
